SPC-8080
<>
产品概述introduce
SPC-8080是本公司针对大规模LED控制系统而特别设计的一款脱机控制器。SPC-8080采用32位高速DSC处理器，使灯光场景的过度更加细腻柔和，系统的稳定可靠性得到充分的保证。其超强的数据带载能力、长距离传输能力和布线灵活性，配合功能强大的视频编播软件DMX-NET ，可控制规则，异形等各种点、线、面光源。
Summary
SPC-8080 is the company designed for large-scale LED control system and specially designed an offline controller. SPC-8080 uses 32 bit high speed DSC processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. Its superior data carrying capacity, long distance transmission capacity and routing flexibility, with powerful video broadcast software DMX-NET, can control the rules, such as various special-shaped point, line, surface light source.
Summary
SPC-8080 is the company designed for large-scale LED control system and specially designed an offline controller. SPC-8080 uses 32 bit high speed DSC processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. Its superior data carrying capacity, long distance transmission capacity and routing flexibility, with powerful video broadcast software DMX-NET, can control the rules, such as various special-shaped point, line, surface light source.
产品特点
features
1. 最多可带载50台SPC-8008，最高30HZ刷新率保证画面的稳定。
2. 支持多机或GPS同步运行模式。
3. 采用市场主流SD卡存储项目文件，与SPC-8008等控制器组成脱机控制系统，可设置相应参数，支持场景选择，亮度调整，速度调整及定时播放等功能。
4.16*2 液晶显示，实时显示控制器参数，状态。友好的人机操作界面。
5.采用标准以太网接口和UDP网络协议，传输距离最大为100米。
6.EMC电磁兼容设计，具有良好的抗干扰能力。
7.软件系统的功能高度整合与开放，播放内容和布线的设计可由应用方独立完成。
Features
1. Can take up to 50 SPC-8008, the highest 30HZ refresh rate to ensure the stability of the screen.
2. Support multi machine or GPS synchronous operation mode.
3. The main SD card is used to store the file of the project, and the off-line control system is composed of SPC-8008 and other controllers. The corresponding parameters can be set up to support the scene selection, brightness adjustment, speed adjustment and regular play .
4. 16*2 liquid crystal display, real-time display controller parameters, status. Friendly man-machine interface.
5. Using standard Ethernet interface and UDP network protocol, the maximum transmission distance of 100 meters.
6. EMC electromagnetic compatibility design, good anti-interference ability.
7. The function of the software system is highly integrated and open, and the design of the content and wiring can be completed independently by the application.
2. 支持多机或GPS同步运行模式。
3. 采用市场主流SD卡存储项目文件，与SPC-8008等控制器组成脱机控制系统，可设置相应参数，支持场景选择，亮度调整，速度调整及定时播放等功能。
4.16*2 液晶显示，实时显示控制器参数，状态。友好的人机操作界面。
5.采用标准以太网接口和UDP网络协议，传输距离最大为100米。
6.EMC电磁兼容设计，具有良好的抗干扰能力。
7.软件系统的功能高度整合与开放，播放内容和布线的设计可由应用方独立完成。
Features
1. Can take up to 50 SPC-8008, the highest 30HZ refresh rate to ensure the stability of the screen.
2. Support multi machine or GPS synchronous operation mode.
3. The main SD card is used to store the file of the project, and the off-line control system is composed of SPC-8008 and other controllers. The corresponding parameters can be set up to support the scene selection, brightness adjustment, speed adjustment and regular play .
4. 16*2 liquid crystal display, real-time display controller parameters, status. Friendly man-machine interface.
5. Using standard Ethernet interface and UDP network protocol, the maximum transmission distance of 100 meters.
6. EMC electromagnetic compatibility design, good anti-interference ability.
7. The function of the software system is highly integrated and open, and the design of the content and wiring can be completed independently by the application.

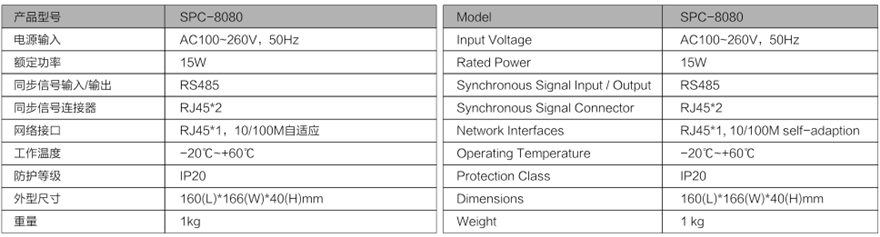

技术规格
Technical specifications
