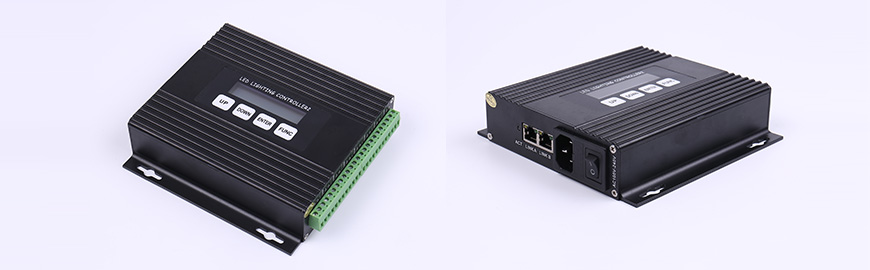

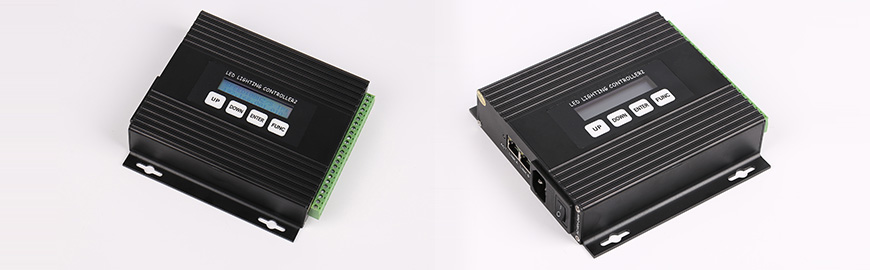

SPC-8008
<>
产品概述introduce
SPC-8008是本公司针对大规模LED控制系统而特别设计的一款联机控制器。SPC-8008采用32位高速DSC处理器，使灯光场景的过度更加细腻柔和，系统的稳定可靠性得到充分的保证。配合功能强大的视频编播软件DMX-NET ，可控制规则，异形等各种点、线、面光源。
Summary
SPC-8008 is the company for large-scale LED control system and specially designed an online controller. SPC-8008 uses 32 bit high speed DSC processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. With powerful video codec software DMX-NET, it can control the rules, shapes, and other points, lines, and surface light source.
Summary
SPC-8008 is the company for large-scale LED control system and specially designed an online controller. SPC-8008 uses 32 bit high speed DSC processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. With powerful video codec software DMX-NET, it can control the rules, shapes, and other points, lines, and surface light source.
产品特点
features
1.支持八路标准DMX512和扩展DMX512输出，R、G、B各256级灰度，高达1677万种颜色,真正实现真彩色。
2.支持在线写址（可对我司的DMX512芯片、模块在线串行编址），全双向通信。
3.增强型DMX512输出，内置抗雷击及ESD静电保护电路。
4.16*2 液晶显示，实时显示控制器参数，状态。友好的人机操作界面。
5.采用标准以太网接口和UDP网络协议，传输距离最大为100米。
6.双网口设计，无需外部交换机，可以实现控制器间级联。
7.主机直接通过网口和控制器相连，实现联机控制。
8.EMC电磁兼容设计，具有良好的抗干扰能力。
9.软件系统的功能高度整合与开放，播放内容和布线的设计可由应用方独立完成。
Features
1. Support eight standard DMX512 and extended DMX512 output, R, G, B each 256 levels of gray, up to 16770 thousand colors, really realize true color.
2. Support for online address (can be on the division of the DMX512 chip, module online serial addressing), full two-way communication.
3. Enhanced DMX512 output, built-in anti lightning and ESD electrostatic protection circuit.
4. 16*2 liquid crystal display, real-time display controller parameters, status. Friendly man-machine interface.
5. Using standard Ethernet interface and UDP network protocol, the maximum transmission distance of 100 meters
6. Dual port design, no external switches can be achieved between the cascade controller.
7. The host is connected directly to the controller through the network port to realize on-line control.
8. EMC electromagnetic compatibility design, good anti-interference ability.
9. The function of the software system is highly integrated and open, and the design of the content and wiring can be completed independently by the application.
2.支持在线写址（可对我司的DMX512芯片、模块在线串行编址），全双向通信。
3.增强型DMX512输出，内置抗雷击及ESD静电保护电路。
4.16*2 液晶显示，实时显示控制器参数，状态。友好的人机操作界面。
5.采用标准以太网接口和UDP网络协议，传输距离最大为100米。
6.双网口设计，无需外部交换机，可以实现控制器间级联。
7.主机直接通过网口和控制器相连，实现联机控制。
8.EMC电磁兼容设计，具有良好的抗干扰能力。
9.软件系统的功能高度整合与开放，播放内容和布线的设计可由应用方独立完成。
Features
1. Support eight standard DMX512 and extended DMX512 output, R, G, B each 256 levels of gray, up to 16770 thousand colors, really realize true color.
2. Support for online address (can be on the division of the DMX512 chip, module online serial addressing), full two-way communication.
3. Enhanced DMX512 output, built-in anti lightning and ESD electrostatic protection circuit.
4. 16*2 liquid crystal display, real-time display controller parameters, status. Friendly man-machine interface.
5. Using standard Ethernet interface and UDP network protocol, the maximum transmission distance of 100 meters
6. Dual port design, no external switches can be achieved between the cascade controller.
7. The host is connected directly to the controller through the network port to realize on-line control.
8. EMC electromagnetic compatibility design, good anti-interference ability.
9. The function of the software system is highly integrated and open, and the design of the content and wiring can be completed independently by the application.

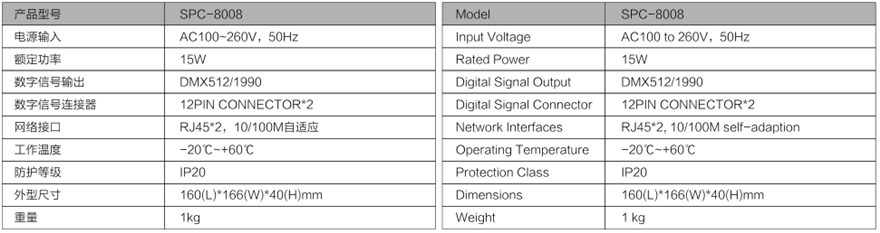

技术规格
Technical specifications

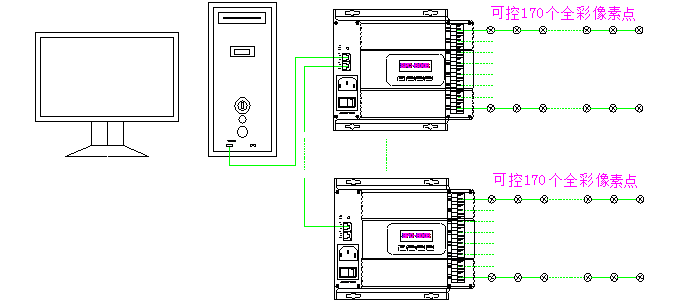

联机图

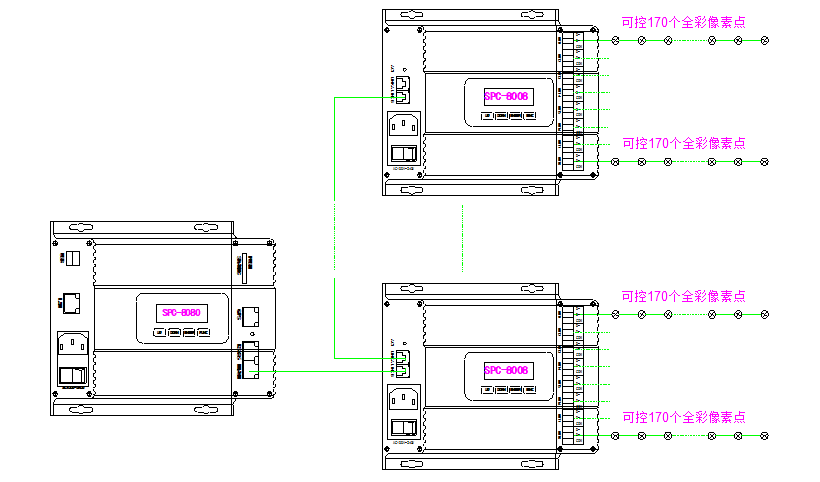

脱机图
