SPC-8000
<>
产品概述introduce
SPC-8000是本公司针对大规模LED控制系统而特别设计的一款控制器。SPC-8000采用32位高速ARM+DSP处理器，使灯光场景的过度更加细腻柔和，系统的稳定可靠性得到充分的保证。配合功能强大的视频编播软件DMX-NET ，可控制规则，异形等各种点、线、面光源。同时支持联机和脱机运行模式。通过以太网连网，可实现远程控制。
Summary
SPC-8000 is a large scale LED control system designed specifically for the company. SPC-8000 uses 32 bit high speed ARM+DSP processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. With powerful video editing software DMX-NET, can control the rules, such as special-shaped point, line, surface light source. Both online and offline modes are supported. Through Ethernet networking, remote control can be achieved.
Summary
SPC-8000 is a large scale LED control system designed specifically for the company. SPC-8000 uses 32 bit high speed ARM+DSP processor to make the scene of the lighting more subtle and soft, and the stability and reliability of the system are fully guaranteed. With powerful video editing software DMX-NET, can control the rules, such as special-shaped point, line, surface light source. Both online and offline modes are supported. Through Ethernet networking, remote control can be achieved.
产品特点
features
1. 8组带光电隔离（2500V隔离电压）的国际标准DMX512/1990信号输出，可控 制4096个DMX通道，1360个全彩RGB灯具，R、G、B各256级灰度，高达1677万种颜色,真正实现真彩色。
2. 蓝屏16*2 液晶显示，友好的人机操作界面。
3. 支持联机，脱机运行模式，支持2G SD卡或MMC卡存取场景文件。
4. 自带4个RJ45接口，支持级连和星形连接组网方式。
5．支持254台控制器通过局域网联网控制，组成超大规模的LED灯光控制系统，最大可控制30多万个全彩像素点。
Features
1. The 8 group with photoelectric isolation (2500V isolation voltage) the international standard DMX512/1990 signal output, can control 4096 DMX channels, 1360 full-color RGB lamps, R, G, B of the 256 gray level, up to 16770 thousand colors, true true color.
2. Blue screen 16*2 LCD display, friendly man-machine interface.
3. Support online, offline mode, support 2G SD card or MMC card access scene file.
4. Comes with 4 RJ45 interfaces to support the connection and connection of the network.
5. Support 254 controllers through the LAN network control, composed of large scale LED lighting control system, the maximum control of about 300000 full-color pixels.
2. 蓝屏16*2 液晶显示，友好的人机操作界面。
3. 支持联机，脱机运行模式，支持2G SD卡或MMC卡存取场景文件。
4. 自带4个RJ45接口，支持级连和星形连接组网方式。
5．支持254台控制器通过局域网联网控制，组成超大规模的LED灯光控制系统，最大可控制30多万个全彩像素点。
Features
1. The 8 group with photoelectric isolation (2500V isolation voltage) the international standard DMX512/1990 signal output, can control 4096 DMX channels, 1360 full-color RGB lamps, R, G, B of the 256 gray level, up to 16770 thousand colors, true true color.
2. Blue screen 16*2 LCD display, friendly man-machine interface.
3. Support online, offline mode, support 2G SD card or MMC card access scene file.
4. Comes with 4 RJ45 interfaces to support the connection and connection of the network.
5. Support 254 controllers through the LAN network control, composed of large scale LED lighting control system, the maximum control of about 300000 full-color pixels.

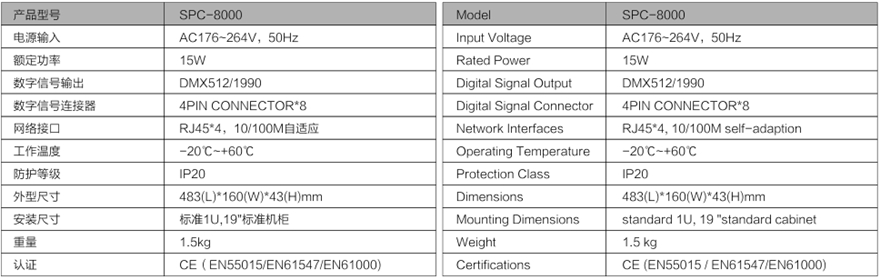

技术规格
Technical specifications

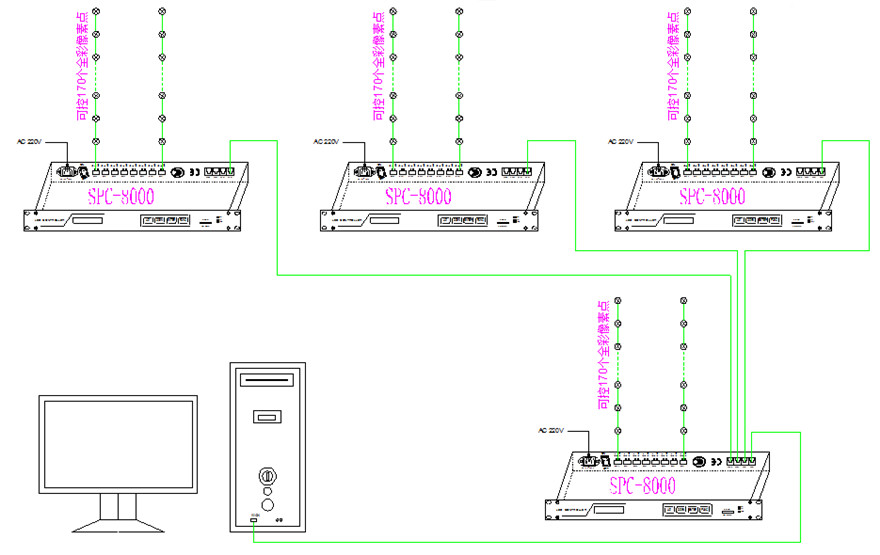

联机图
