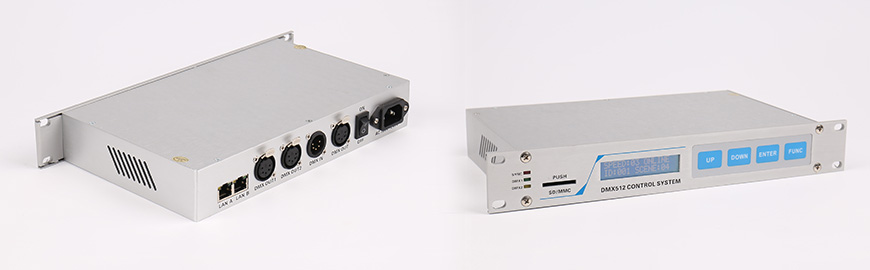

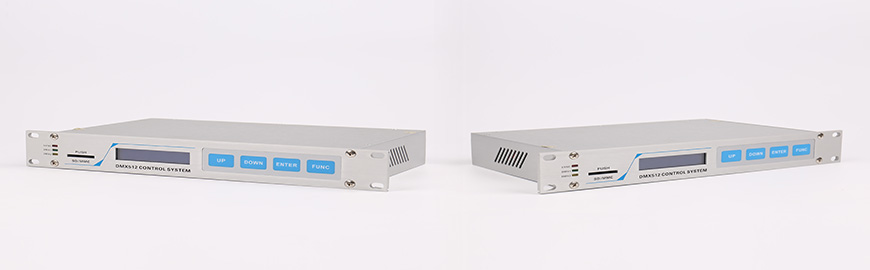

SPC-2000C
SPC-2000C 是本公司针对LED灯饰采用DMX512控制而特别设计的一款DMX512智能灯光控制器。配合功能强大的 DMX-NET系统软件，实现各种复杂的艺术灯光场景效果。脱机模式下支持多机同步运行。简化了传统控制系统的主从式架构，同时扩展了DMX512的输出通道， SPC-2000C即可以是主机也可以是从机。通过以太网连网，可实现远程控制。
Summary
SPC-2000C is the company's LED lighting for the use of DMX512 control and specially designed a DMX512 intelligent lighting controller. With powerful DMX-NET system software, to achieve a variety of complex art scene lighting effects. Offline mode supports multi machine synchronous operation. It simplifies the master-slave structure of the traditional control system, and extends the output channel of the DMX512. The SPC-2000C can be either a host or a slave. Through Ethernet networking, remote control can be achieved.
features
2. 蓝屏16*2 液晶显示，友好的人机操作界面。
3. 支持联机，脱机运行模式，支持2G SD卡或MMC卡存取场景文件。
4．支持254台控制器通过局域网联网控制，组成超大规模的LED灯光控制系统，最大可控制超过8万个全彩像素点。
Features
1. The two group with photoelectric isolation (2500V isolation voltage) the international standard DMX512/1990 signal output, can control 1024 DMX channels, 340 full-color RGB lamps, R, G, B of the 256 gray level, up to 16770 thousand colors, true true color.
2. 16 * 2 LCD blue screen display, user-friendly operation interface.
3. Support online and offline modes, 2G SD card or MMC card to access the scene files.
4. Support 254 controllers’ network through the LAN, composing a super-large-scale LED lighting control system, a maximum of 80,000 full-color pixels can be controlled.

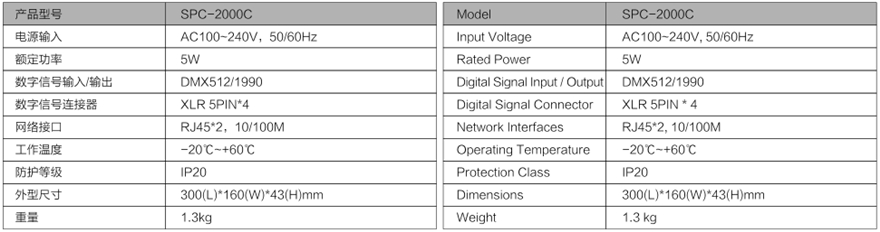

Technical specifications
联机图

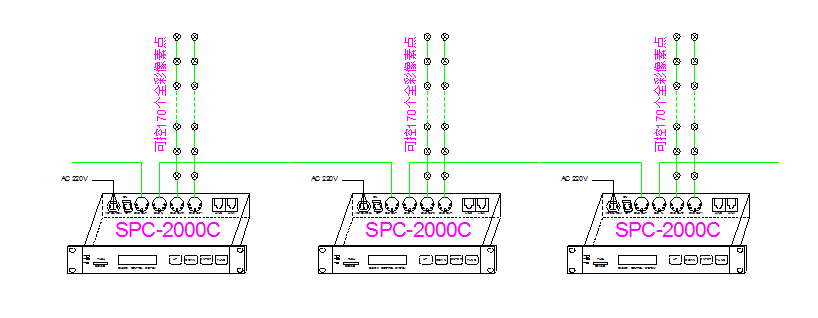

脱机图
