十通道DMX512开关驱动器
<>
产品概述introduce
产品特点
features
1. 接收国际标准DMX512信号。10通道开关输出，每通道输出电流高达3安培。
2. 每通道输出端子均带LED指示灯、三个接点：常开、常闭、公共干接点，每一个接点电流不超过AC250V/3A 或DC30V/3A。
3. 国内首创采用旋转开关设置DMX512起始地址，避免以往采用二进制拨码方式设置DMX512起始地址所带来的换算困难，容易错拨，识别困难等一系列弊端。
4. DMX512写址器设置起始地址和旋转开关设置起始地址任意选择。
Features
1. Receive international standard DMX512 signal. 10 channel switch output, each channel output current up to 3 amperes.
2. Each channel output terminals are equipped with LED indicator, three contacts: normally open, normally closed, common dry contact, each contact current is not more than AC250V/3A or DC30V/3A.
3. Domestic first use of rotary switch to set the starting address of the DMX512, to avoid the use of binary code to set the initial address of the DMX512 conversion difficulties, easy to dial, difficult to identify a series of drawbacks.
4. DMX512 address set to start the address and the start of the rotary switch to select any address.
技术规格
Technical specifications
技术规格
产品型号：SPS-103
电源输入：DC9-40V/AC9~36V
额定功率：最大8W
输出电流：3A*10通道（干接点输出）
数字信号输入/输出：DMX512
工作温度：-20℃~+60℃
防护等级：IP20
外型尺寸：145(L)*90(W)*45(H)mm
重量：0.3kg
Technical Specifications
Model: SPS-103
Input Voltage: DC9-40V/AC9~36V
Rated Power: max 8 W
Output Current: 3A*10 channels (dry contact output)
Digital Signal Input/Output: DMX512
Operating Temperature: -20℃~+60℃
Protection Class: IP20
Dimensions: 145(L) * 90(W) * 45(H) mm
Weight: 0.3kg

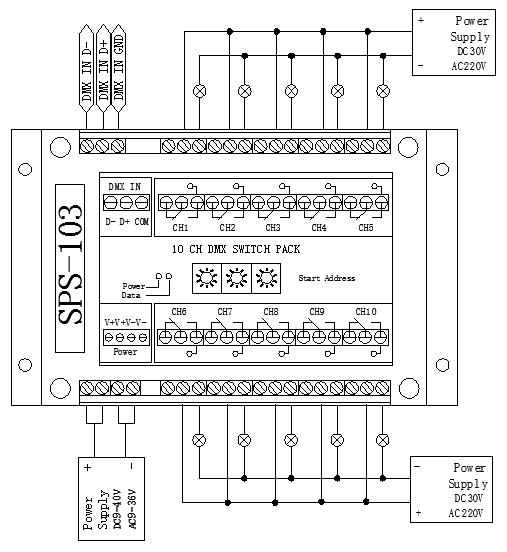

接线图 Wiring Diagram
