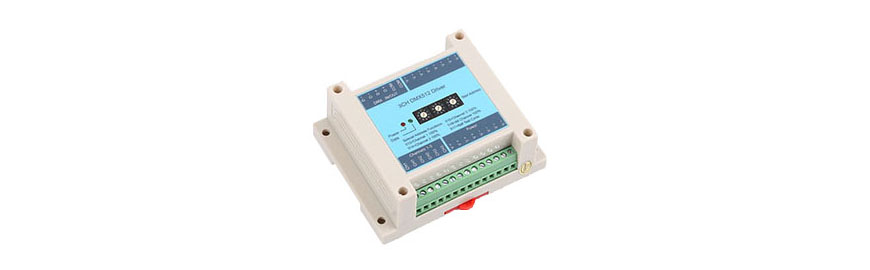

三通道DMX512驱动器
SPD-310采用先进的微电脑控制技术，完全符合DMX512/1990标准。可选择1～3通道输出，每通道高达256级灰度变化，最大10安培电流输出。可广泛用于城市景观照明系统的控制与驱动，特别适合于LED灯具的调光。
Summary
SPD-310 using advanced microcomputer control technology, fully in line with DMX512/1990 standards. Can choose 1 ~ 3 channel output, each channel up to 256 gray level change, the maximum output current of 10 amperes. The utility model can be widely used for the control and drive of the urban landscape lighting system, and is especially suitable for the dimming of the LED lamps.
features
2. 国内首创采用旋转开关设置DMX512起始地址，避免以往采用二进制拨码方式设置DMX起始地址所带来的换算困难，容易错拨，识别困难等一系列弊端。
3. 内建多种测试程序，轻松实现无DMX512主控器时脱机运行。
4. 每通道高达256级灰度，支持256*256*256 = 1677万种颜色变化。
Features
1. Compatible with the international standard DMX512 signal. 3 output channels,
output current up to 10A per channel.
2. Adopt a rotary switch to set DMX512 start address for the first time in our country, avoiding a series of drawbacks resulted from traditional binary dial-up, namely conversion difficulty, dialing fallibility, identifying problem, etc.
3. Built-in many kinds of testing programs, implementing the offline operation easily without DMX512 main control.
4. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
Technical specifications
技术规格
产品型号：SPD-310
电源输入：DC8-30V
输出功率：最大900W
输出电流：10A*3通道（沉入式输出）
输出频率：100Hz
数字信号输入/输出：DMX512
工作温度：-20℃~+60℃
防护等级：IP20
外型尺寸：115(L)*90(W)*40(H)mm
重量：0.2kg
Technical Specifications
Model: SPD-310
Input Voltage: DC8-30V
Output Power: max 900W
Output Current: 10A*3 channels (sunk output)
Output Frequency: 100Hz
Digital Signal Input/Output: DMX512
Operating Temperature: -20℃~+60℃
Protection Class: IP20
Dimensions: 115(L)*90(W)*40(H) mm
Weight: 0.2kg

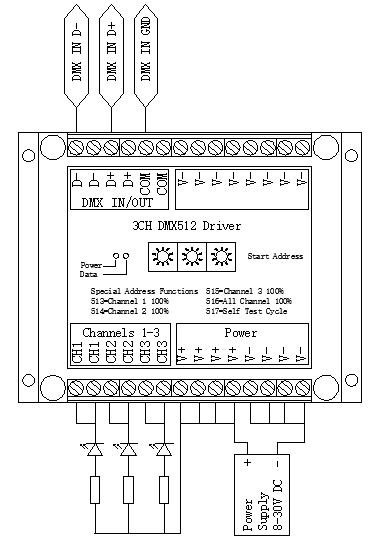

接线图 Wiring Diagram
