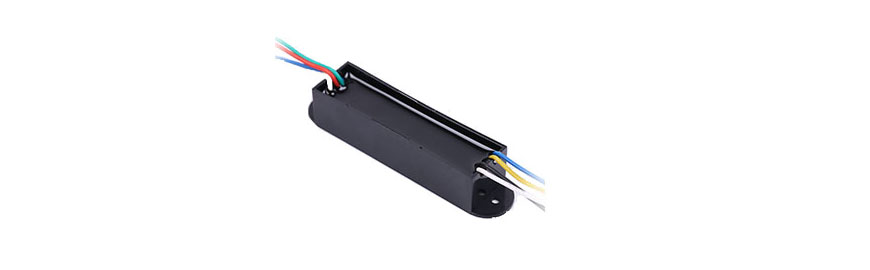

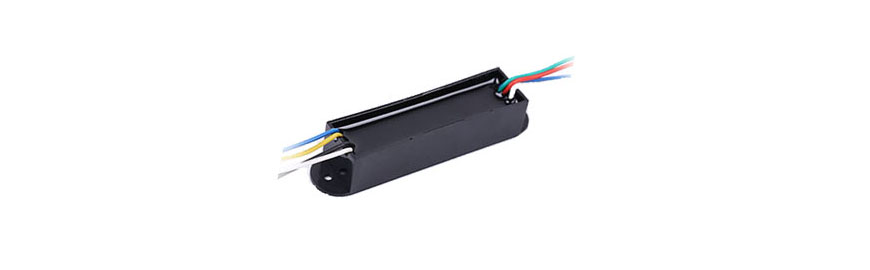

3通道防水型DMX512驱动器
<>
产品概述introduce
SPD-302采用先进的微电脑控制技术，完全符合DMX512/1990标准。可选择1～3通道输出，每通道高达256级灰度变化，最大2安培输出。可广泛用于城市景观照明系统的控制与驱动，特别适合于LED灯具的调光。
Summary
SPD-302 using advanced microcomputer control technology, fully in line with DMX512/1990 standards. Can choose 1 ～ 3 channel output, each channel up to 256 gray level change, maximum output of 2 amperes. The utility model can be widely used for the control and drive of the urban landscape lighting system, and is especially suitable for the dimming of the LED lamps.
产品特点
features
1. 接收国际标准DMX512信号，3通道输出，每通道输出电流最高可达2安培。
2. 内置稳压电路,供电范围从8-28V。
3. 每通道高达256级灰度，支持256*256*256 = 1677万种颜色变化。
4. 防水型、工业级设计，抗干扰能力超强。
5. 支持DMX512写址器设置起始地址。
Features
1. Compatible with the international standard DMX512 signal, 3 output channels, output current up to 2A per channel.
2. Built-in constant-voltage circuit, 8V to 28V input voltage range.
3. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
4. Waterproof and industrial grade design, excellent robustness.
5. Support the DMX512 Address Writer to set start address.
2. 内置稳压电路,供电范围从8-28V。
3. 每通道高达256级灰度，支持256*256*256 = 1677万种颜色变化。
4. 防水型、工业级设计，抗干扰能力超强。
5. 支持DMX512写址器设置起始地址。
Features
1. Compatible with the international standard DMX512 signal, 3 output channels, output current up to 2A per channel.
2. Built-in constant-voltage circuit, 8V to 28V input voltage range.
3. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
4. Waterproof and industrial grade design, excellent robustness.
5. Support the DMX512 Address Writer to set start address.
技术规格
Technical specifications
产品型号：SPD-302
电源输入：DC8-28V
输出功率：最大168W
输出电流：2A*3通道（沉入式输出）
输出频率：200Hz
数字信号输入/输出：DMX512
工作温度：-40℃~+60℃
防护等级：IP65
外型尺寸：103(L)*23(W)*20(H)mm
重量：0.1kg
Technical Specifications
Model: SPD-302
Input Voltage: DC8-28V
Output Power: max 168 W
Output Current: 2A*3 channels (sunk output)
Output Frequency: 200Hz
Digital Signal Input/Output: DMX512
Operating Temperature: -40℃~+60℃
Protection Class: IP65
Size: 103(L)*23(W)*20(H) mm
Weight: 0.1kg
电源输入：DC8-28V
输出功率：最大168W
输出电流：2A*3通道（沉入式输出）
输出频率：200Hz
数字信号输入/输出：DMX512
工作温度：-40℃~+60℃
防护等级：IP65
外型尺寸：103(L)*23(W)*20(H)mm
重量：0.1kg
Technical Specifications
Model: SPD-302
Input Voltage: DC8-28V
Output Power: max 168 W
Output Current: 2A*3 channels (sunk output)
Output Frequency: 200Hz
Digital Signal Input/Output: DMX512
Operating Temperature: -40℃~+60℃
Protection Class: IP65
Size: 103(L)*23(W)*20(H) mm
Weight: 0.1kg

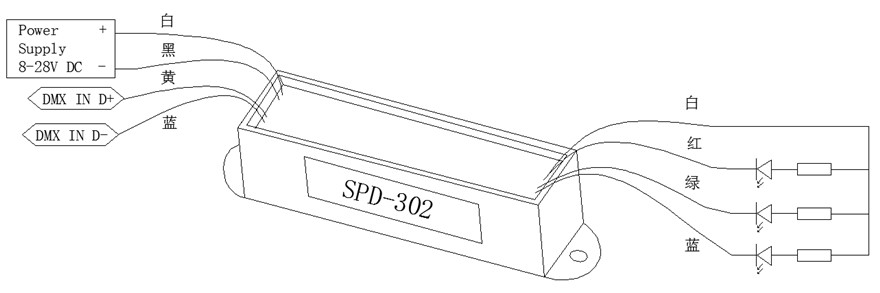

接线图 Wiring Diagram
