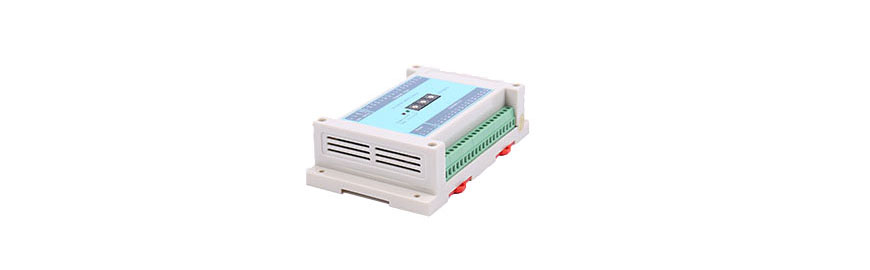

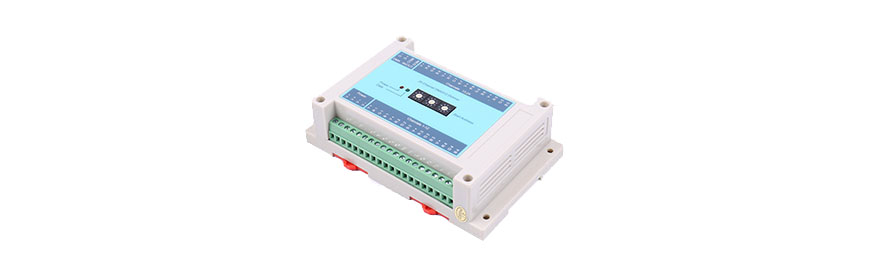

24通道DMX512调光器
<>
产品概述introduce
产品特点
features
1. 接收国际标准DMX512信号。24通道输出，每通道输出电流最高可达1安培。可控制8个全彩RGB象素点。
2. 国内首创采用旋转开关设置DMX512起始地址，避免以往采用二进制拨码方式设置DMX512起始地址所带来的换算困难，容易错拨，识别困难等一系列弊端。
3. DMX512写址器设置起始地址和旋转开关设置起始地址任意选择。
4. 每通道高达256级灰度，支持256*256*256 = 1677万种颜色变化。
Features
1. Compatible with the international standard DMX512 signal, 24 output channels, output current up to 1A per channel. Each channel can control 8 full-color RGB pixel points.
2. The rotating switch is used to set the starting address of DMX512 in our country, so as to avoid a series of drawbacks, such as conversion difficulty caused by setting up the DMX512 initial address in the former way, easy to make mistake and difficult to recognize .
3. Set the start address by either DMX512 Address Writer or rotary switch.
4. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
2. 国内首创采用旋转开关设置DMX512起始地址，避免以往采用二进制拨码方式设置DMX512起始地址所带来的换算困难，容易错拨，识别困难等一系列弊端。
3. DMX512写址器设置起始地址和旋转开关设置起始地址任意选择。
4. 每通道高达256级灰度，支持256*256*256 = 1677万种颜色变化。
Features
1. Compatible with the international standard DMX512 signal, 24 output channels, output current up to 1A per channel. Each channel can control 8 full-color RGB pixel points.
2. The rotating switch is used to set the starting address of DMX512 in our country, so as to avoid a series of drawbacks, such as conversion difficulty caused by setting up the DMX512 initial address in the former way, easy to make mistake and difficult to recognize .
3. Set the start address by either DMX512 Address Writer or rotary switch.
4. Each channel reaches up to 265 gray scale levels, supporting 16,770,000 different kinds of colors.
技术规格
Technical specifications
技术规格
产品型号：SPD-241
电源输入：DC8-28V
输出功率：最大670W
输出电流：1A*24通道（沉入式输出）
输出频率：200Hz
数字信号输入/输出：DMX512
工作温度：-20℃~+60℃
防护等级：IP20
外型尺寸：145(L)*90(W)*45(H)mm
重量：0.2kg
认证：CE（EN55022/EN55024/EN61000)
Technical Specifications
Model: SPD-241
Input Voltage: DC8-28V
Output Power: max 670 W
Output Current t: 1A*24 channels (sunk output)
Output Frequency: 200Hz
Digital Signal Input/Output: DMX512
Operating Temperature: -20℃~+60℃
Protection Class: IP20
Dimensions: 145(L)*90(W)*45(H) mm
Weight: 0.2kg
Certifications: CE (EN55022 / EN55024/EN61000)

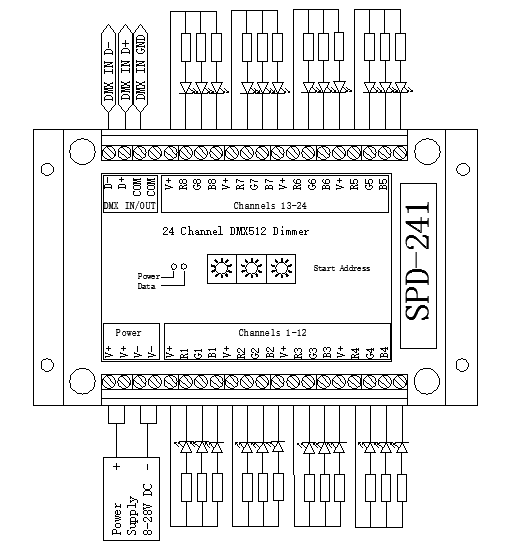

接线图 Wiring Diagram
