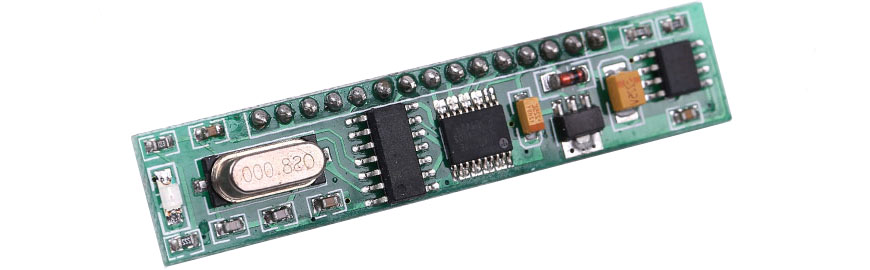

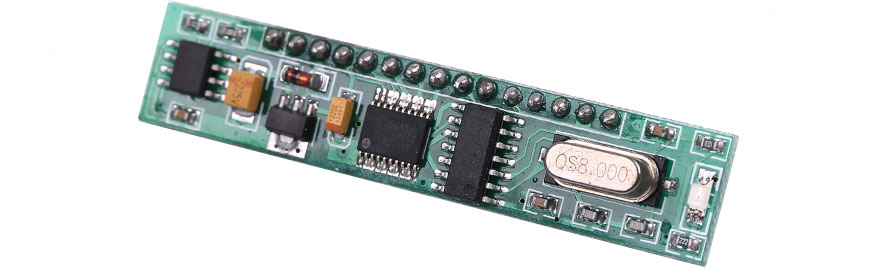

SPC-500B
概述
SPC-500B采用先进的解码技术，把国际标准的DMX512/1990标准数码信号转换成标准的SPI(TTL)数码信号。输出控制所有基于74HC595、DM114、DM134、6B595、ZQ9712、MB15026、TB62706等等几十种类似功能芯片驱动的灯具，每台可解码30个通道，可根据需要连接任意台解码器。从而使国内绝大部分的数码LED灯具可以跟国际标准的DMX512协议来接轨，如广泛使用的点光源、数码灯管、投光灯、幕墙灯、 像素屏、舞台地板砖等等各种数码LED灯具。
Summary
SPC-500B uses advanced decoding technology to convert international standard DMX512/1990 standard digital signals into standard SPI (TTL) digital signals. Output control all drive dozens of similar functions 74HC595, DM114, DM134 chip, 6B595, ZQ9712, MB15026, TB62706 etc. based on the lamps, each of them can decode 30 channels, which can be connected to any of decoders. The vast majority of the lamps so that domestic digital LED can follow the international standard DMX512 protocol standards, such as the widely used digital point light source, lamp, lamp, wall lamp, pixel screen, stage floor tiles and so on all kinds of digital LED lamps.
features
1. 接收国际标准DMX512信号。36通道自适应解码输出。
2. 内置稳压电路,供电范围从9-30V。
3. 每通道高达256级灰度，支持256*256*256 = 1677万种颜色变化。
4. 体积业界最小，全贴片制造，工业级设计，抗干扰能力超强。
5. 支持DMX512写址器设置起始地址。
Features
1. Receive international standard DMX512 signal. 36 channel adaptive decoding output.
2. Built in voltage regulator circuit, power supply range from 9-30V.
3. Each channel up to 256 gray level, support 256*256*256 = 16770 thousand color changes.
4. Volume of the industry's smallest, full chip manufacturing, industrial design, anti-interference ability.
5. Support DMX512 address set to start address.
Technical specifications
技术规格
产品型号：SPC-500B
电源输入：DC9-30V
输出通道：36通道自适应
输出信号: SPI
数字信号输入/输出：DMX512
工作温度：-40℃~+70℃
外型尺寸：60(L)*12(W)*15(H)mm
Technical Specifications
Model: SPC-500B
Input Voltage: DC9-30V
Output Channels: 36 channels self-adaptive
Output Signal: SPI
Digital Signal Input/Output: DMX512
Operating Temperature: -40℃~+70℃
Dimensions: 60(L)*12(W)*15(H) mm

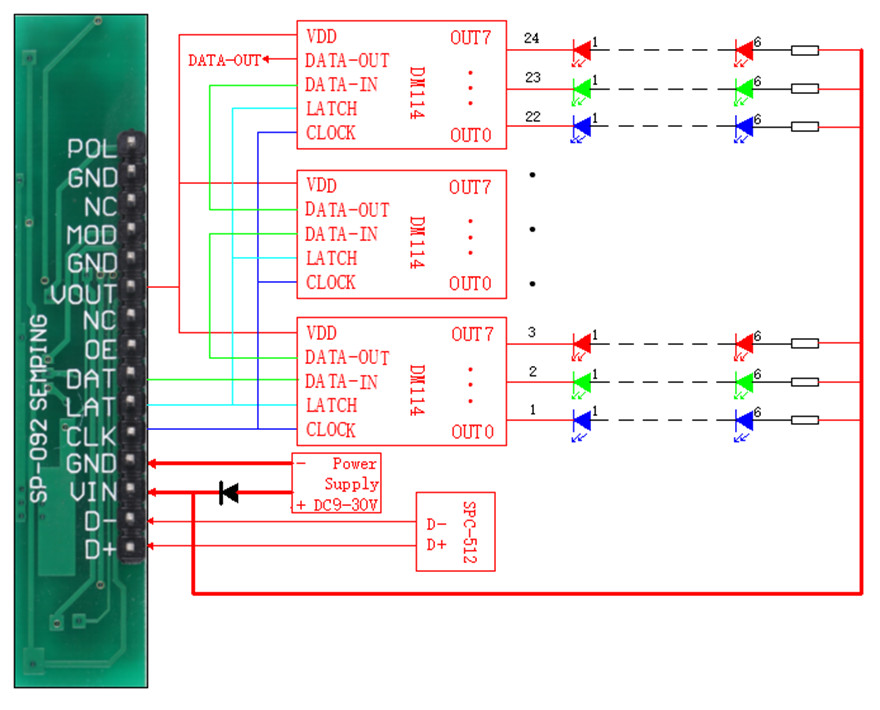

接线图 Wiring Diagram
