特点

1. 接收国际标准DMX512信号，单通道最大1.5A恒流输出。

2. 超宽直流供电范围，DC9-60V，效率高达90%以上，可串1-12颗大功率LED。

3. 0-100%调光输出，可达65535级灰度。

4. 超小型、工业级设计，抗干扰能力超强。

5. 支持在线自动写址，并可查看地址是否成功写入。支持在线故障查找，方便工程安装调试维护。

6. DMX512信号总线采用标准方式，写址线一进一出级连方式，避免坏掉一个灯，影响后面一串灯正常工作。

Features

1. Receive international standard DMX512 signal, single channel max 1.5A constant current output.

2. Ultra wide DC power supply range, DC9-60V, efficiency of up to 90%, can be strung 1-12 large power LED.

3. 0-100% dimming output, up to 65535 gray level.

4. Ultra small, industrial design, strong anti-interference ability.

5. Support online automatic address, and can view the address is written successfully. Support for online fault detection, easy to install and maintain the project.

6. The DMX512 bus signal using a standard way to write access line into a cascade way, to avoid the bad effects of a lamp, a lamp behind the normal work.

Dimensions: 40(L)*27(W)*12(H)mm

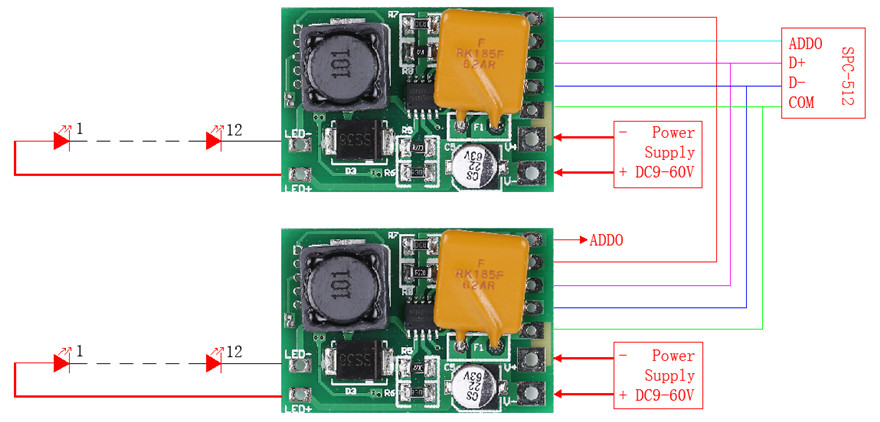

接线图 Wiring Diagram
